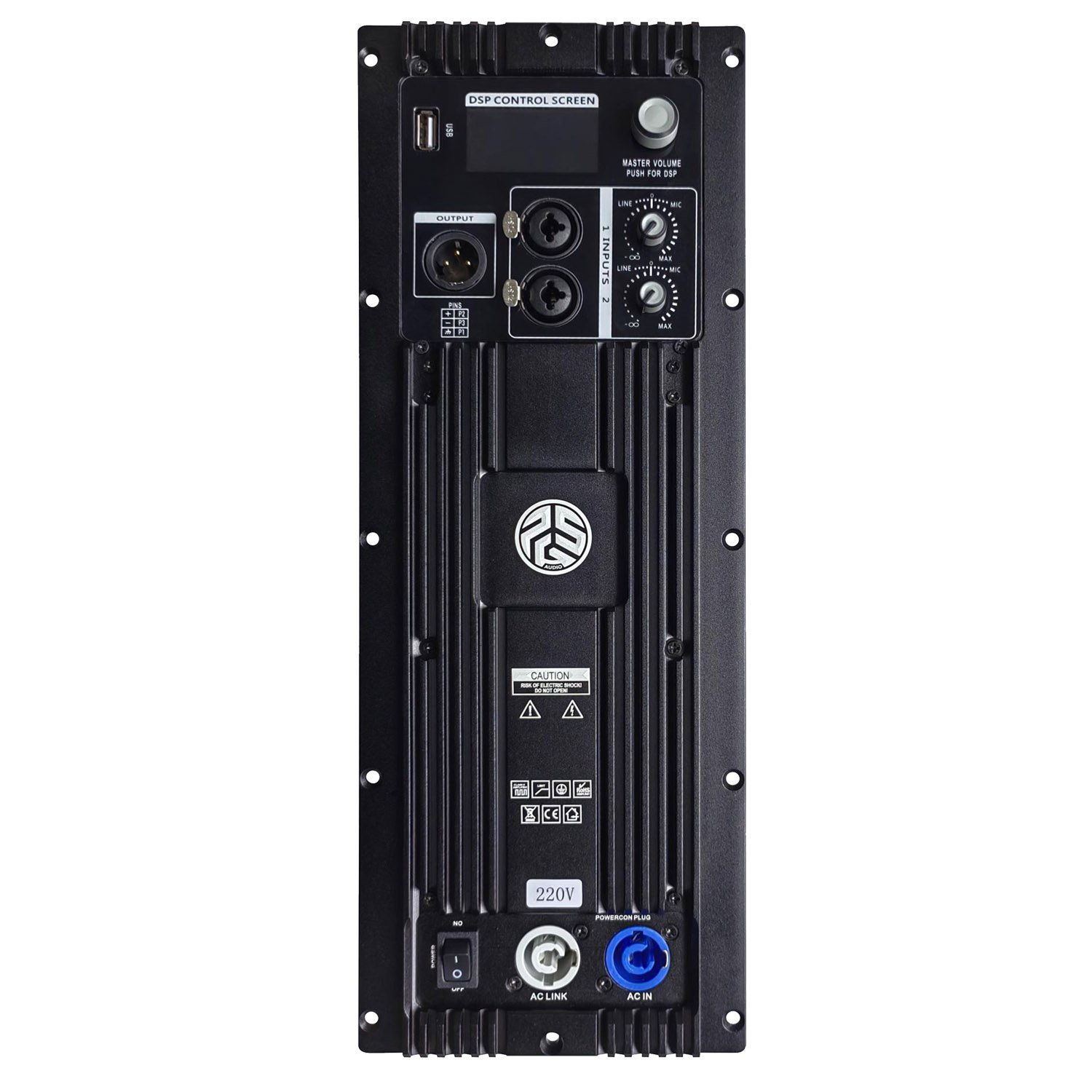

PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB

Item ID: 765542576344
In Stock Free Shipping On Sale
Sale!
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
SKU:

765542576344

PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
Item ID: 765542576344
In Stock Free Shipping On Sale
Sale!
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
PSG Audio PAL750 + CQ160 - 750 Watt Amplifier Module with DSP and USB
In Stock — Ready to Ship Free Shipping Same-day delivery in Miami
Questions? Ask a Pro Audio Expert Real people in Miami, ready to help you pick the right gear.
(866) 279-4489 Email
Local PickupPick up in Miami, FL
Easy Returns30–90 day returns
FinancingAffirm, Afterpay, Snap, Acima
WarrantyExtended plans available
Become a VIP memberFree account — instant access to better prices
  • Wholesale prices
  • No restrictions
  • No sales person needed
Create your VIP account

+ Free Shipping

Original price was: $249.99.Current price is: $209.99.

Create a VIP Account

Wholesale Prices
No Restrictions
No Sales Person Needed
Create Your VIP Account
Local Pickup Available Pick up your order in Miami, FL Skip the shipping and collect your order at our location.
Schedule Your Local Pickup Now
Easy Returns 30-90 Days

Checkout Financing Options

No credit? No problem — lease-to-own options available.

Related Bundles

Complete your setup

Description

Product Highlights
  • 750 Watt
  • Digital Signal Processing
  • Bluetooth
  • Highly Configurable

Features

Thermal protection.

Power limiting, Short-circuit and overload output protection.

Permanent signal limiter.

Auxiliary output voltage:+/-15Vregulated.1000mAmax;+5V1000m.

A max Bypass line outputs torexternalactive/passive filters.

Mute command.

Temperature controlled internal fan and output.

DSP or Analog processing plugin optional boards.

Additional Information

AUDIO7
Power/8Ω EIA 1 kHz 1% THD - 400W+100W
Power/4Ω EIA 1 kHz 1% THD - 650W+100W
Typical Distortion - 0.05%
Frequency Response
(8 ohms) - 20 Hz-20 kHz
Damping Factor
(8 ohms) - >300
Noise (20 Hz–20 kHz, 32 dB Gain) - ＜1mv
Maximum Gain (1.2V setting) - 28dB
DSP15
Analog Inputs
and output (single ended) - 1 in 2 out
Input-to-output latency - 380µs
Gain
- 60dB
Dynamic Range
(unity gain) - typ.95dB(A)
THD
(@ 0dBu, 1kHz, unity gain) - ＜0.02%
Frequency Response
- 20 Hz-20 kHz, ±0.5 dB
Sample rate
- 48kHz
Delay - 2ms
PEQ (each input and output) - 7
Grouping EQ (each input) - 7
Crossover
(each input, LPF and HPF) - 24dB/Oct
Crossover
(each output, LPF and HPF) - 24dB/Oct
Limiter
attack - 10240db/s
Limiter
release - 23 db
S/N
- 80dB
