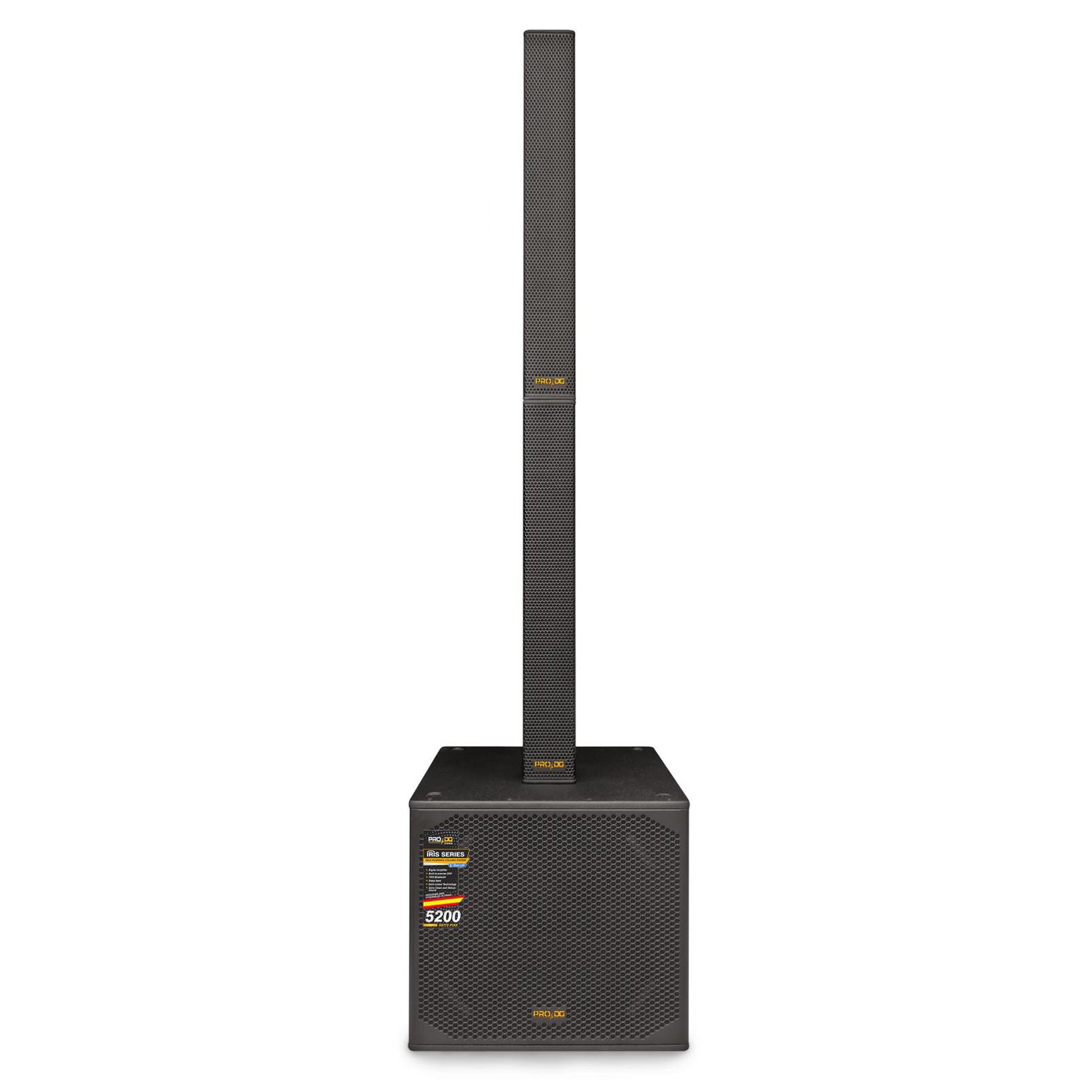

PRO DG IRIS 5200W Portable Line Array Column PA with an 18-inch Subwoofer

The new Iris Series from Pro DG Systems is the ultimate column-type system for permanent installations, portable use, and all types of point-source applications where high performance and a discreet visual impact are required.

The Iris Series consists of:

• Column 1 (Top 1):
Configured with six Pro DG Systems 3.5″ woofers (40 W RMS, 8 Ω) and one 0.75″ Pro DG Systems compression driver (50 W RMS, 8 Ω), coupled to a diffuser with a 90° x 40° (H x V) dispersion pattern. This unit handles mid and high frequencies.

• Column 2 (Top 2):
Equipped with six Pro DG Systems 3.5″ woofers (40 W RMS, 8 Ω) for additional mid-frequency reinforcement.

• Subwoofer:
Built with a single Pro DG Systems 18″ speaker (800 W RMS, 8 Ω) dedicated to low-frequency reproduction.

All components—including both columns and the subwoofer—are powered by a state-of-the-art Class-D amplification module located inside the subwoofer. The module includes four factory presets, independent volume controls for the columns and subwoofer, two XLR/Jack combo inputs with mic/line selector on Channel 2, plus an XLR link output. It is fully plug-and-play.

Bluetooth connectivity allows music playback from a PC, mobile phone, or tablet, and includes TWS (True Wireless Stereo) functionality, enabling stereo Bluetooth playback via synchronization.

No wiring between elements! Power and signal are transmitted internally through the mounting supports connecting the subwoofer and columns. Simply connect power and signal to the subwoofer—nothing else is needed.

The compact design, low weight, and integrated handles on both the columns and the subwoofer ensure maximum portability. Optional transport trolley and protective cover are available, providing significant logistical advantages.

The system’s modular design allows easy setup by a single person, making it extremely versatile.

Thanks to its innovative versatility, the Iris Series is ideal for main PA, frontfill, and sidefill use in outdoor events or permanent installations. It is perfect for live concerts, theaters, under-balcony coverage, houses of worship, corporate applications, and any event requiring high performance and flexibility.

UPC:664554333924
